Atmoz Double chamber vacuum machines Henkelman

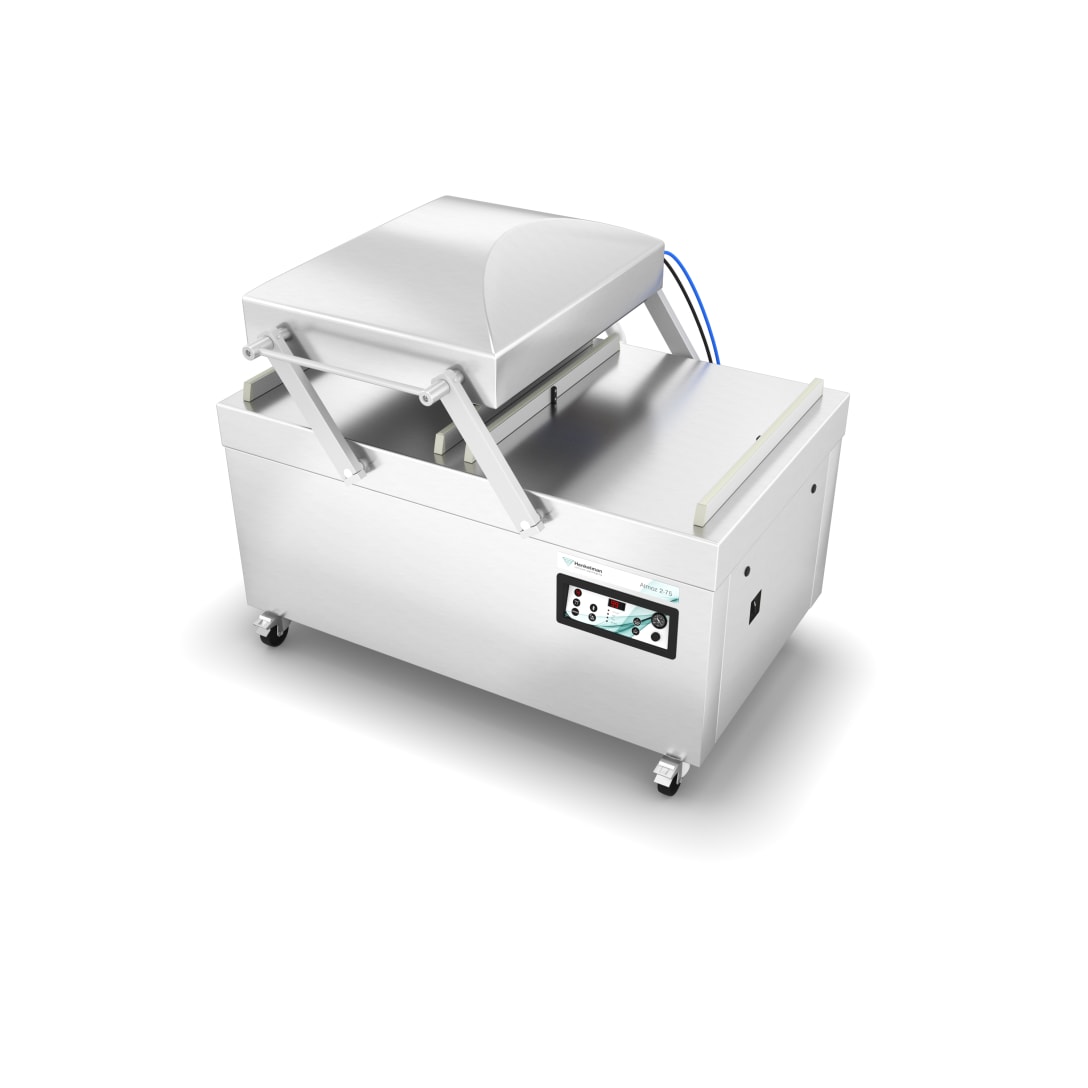

  • A2-75.C.10Pr.LR.DTW.Real5B

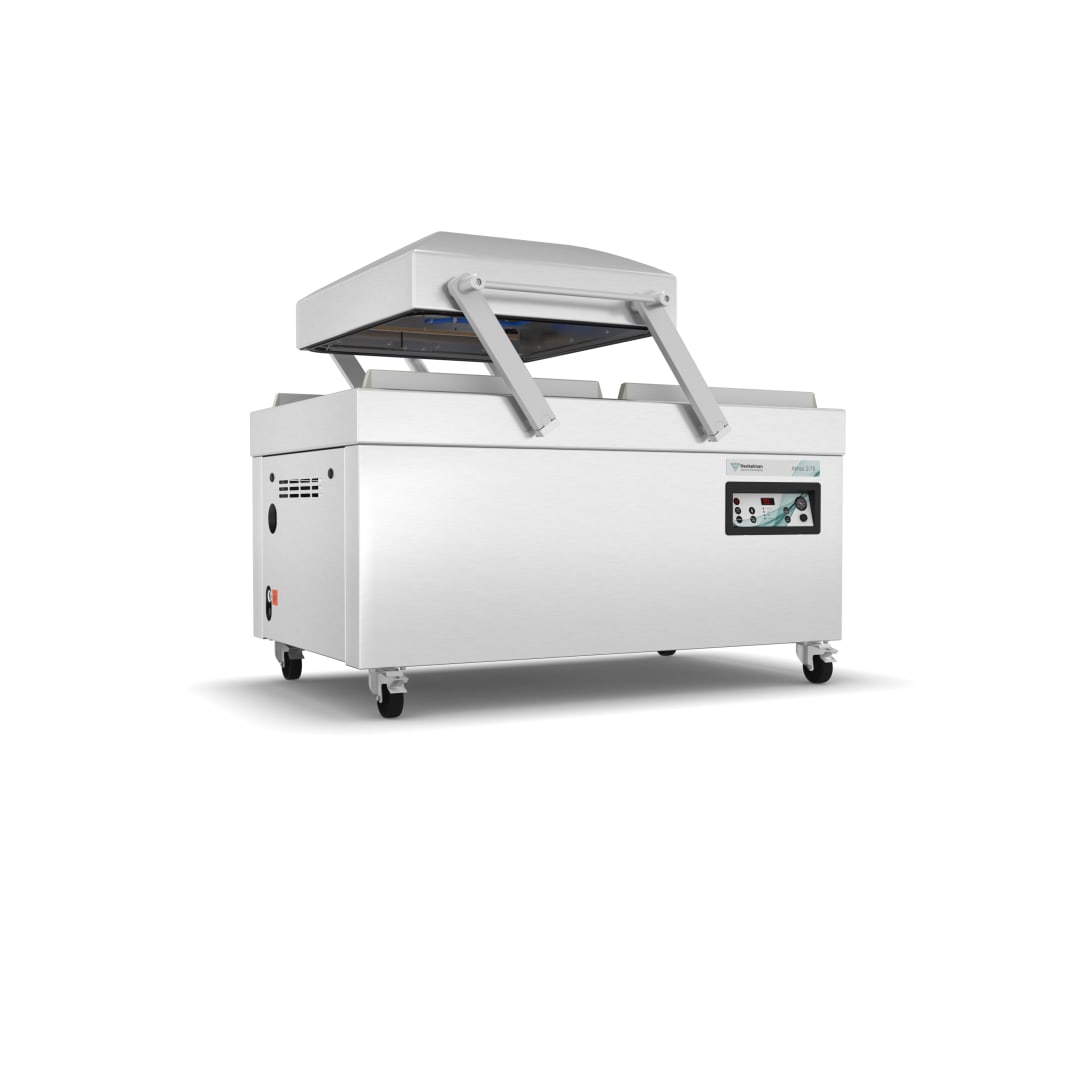

  • A2-75.C.10Pr.VA.DTW.Hero2

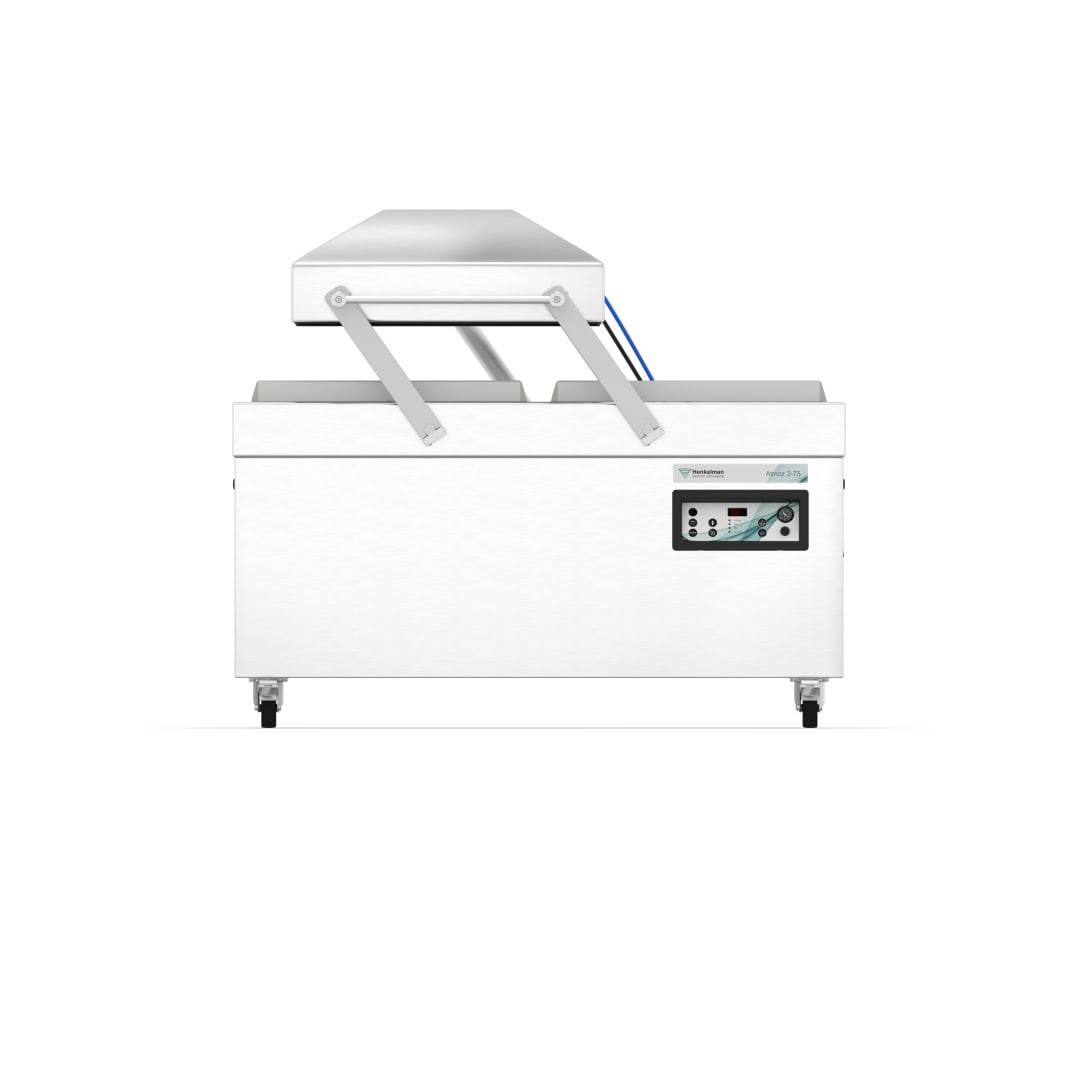

  • A2-75.C.10Pr.VA.DTW.Hero4

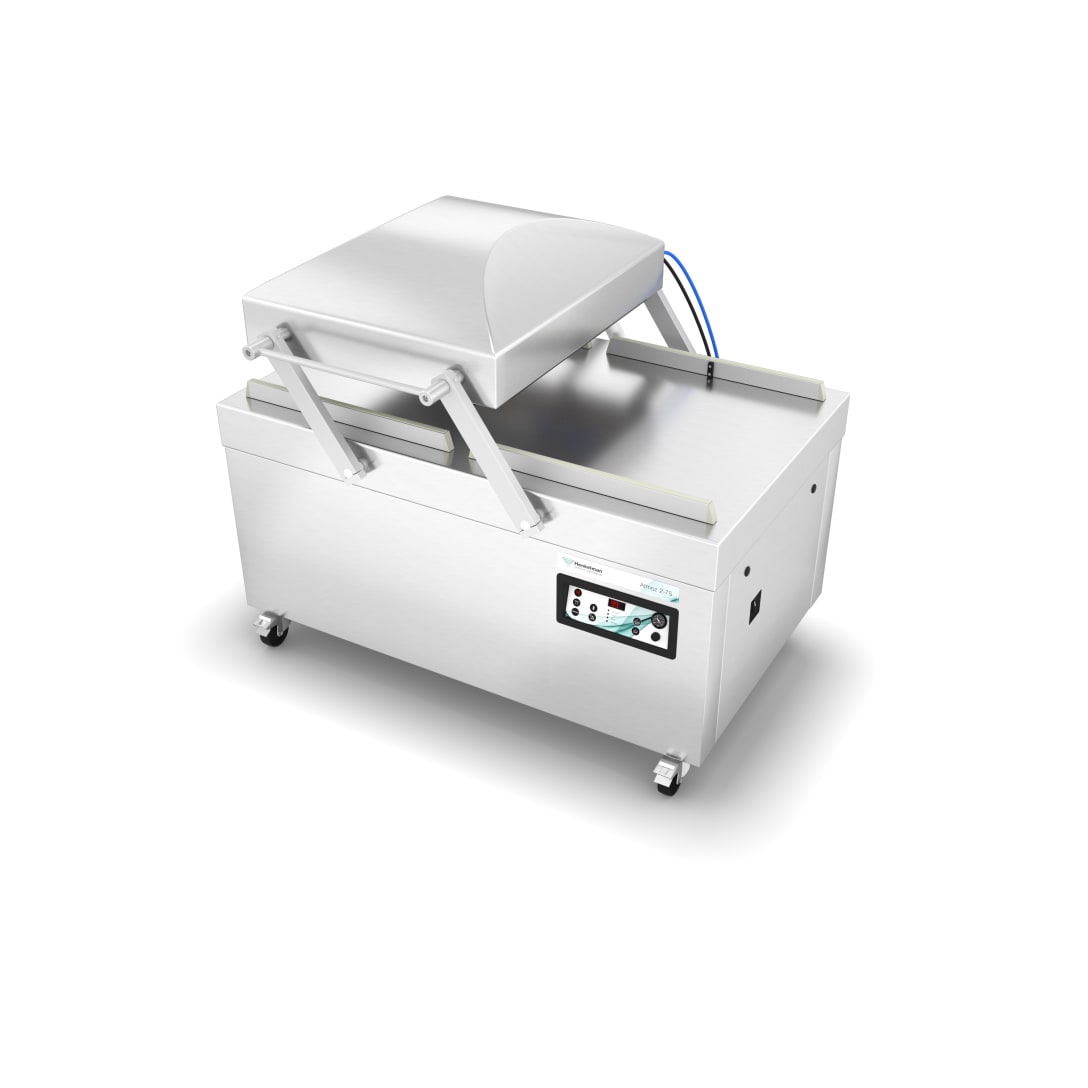

  • A2-75.C.10Pr.VA.DTW.Real5
  • BO_42_H_10P_1_DTW_REAL-7

Soldering bar configuration

Operating system

  • 10 program memories
  • Advanced Control System (ACS)

Additional options

  • Vacuum sensor control
  • Liquid control
  • Soft air
  • Gas packaging

Double chamber vacuum packaging machine with extra-long sealing bars. As well as being longer, the external suction tube also provides more space for product placement. This machine is ideal for industrial packaging of large products.

Machine dimensions :  1210 x 1545 x 1105 mm    (LxWxH)

Weight : 462 kg

Pump capacity : 141m3/h

Machine cycle :  13-35 sec
Machine dimensions : 1320 x 1965 x 1105 mm ( LxWxH)

Weight: 770 kg

Pump capacity: 264 m3/h

Machine cycle: dry
  • 2 welding bars (front - rear)
  • 2 sealing bars (left and right)

Welding system

  • Double weld
  • Cut welding
  • 1-2 Outage
  • Wide welding
Request Quote
Download Spec

Additional options

  • Bi-active welding
  • Connection for external pump
  • High-performance version

Highlights

Minimizes interruptions to the packaging process in
commercial environments. This makes it possible to pack large quantities
of products quickly and efficiently.

A flat table is easy to use and simple to clean.

Up to 10 customized vacuum programs can be defined and saved.

Manual setting of vacuum duration

Automatic maintenance notification when the specified number of cycles has been reached. Standard on all Henkelman machines.

Durable stainless steel material designed for prolonged industrial use.

Short injections of air prevent the meat from degassing during the sealing phase
. This guarantees a longer shelf life and avoids the formation of air bubbles in the packaging. This guarantees a longer shelf life and avoids the formation of air bubbles in the packaging
.

Brief injections of air prevent the meat from degassing during the sealing phase
. This guarantees a longer shelf life and prevents the formation of air bubbles in the packaging
.

Extra long sealing bars

Thanks to its workplate and lid construction, this
double chamber vacuum sealer has no problem sealing
several products at the same time. The Atmoz is available with
sealing bars in lengths of 660 or 880 millimeters.

A2-90.C.10Pr.VA.DTW.Real5
Flat work surface
A2-90_Real6_TopOnly

Flat worktops are extremely practical for packaging
different products. The worktops are also easy to
clean and keep clean, thanks in particular to the removable
silicone gasket holder.

Specifications
Chamber dimensions (mm)
760 x 660 x 280
870 x 880 x 280
2 welding bars (front-rear)
760 x 660 x 280
870 x 880 x 280
2 sealing bars (left-right)
880 x 550 x 280
N/A
Machine dimensions (mm)
1210 x 1545 x 1105
1320 x 1965 x 1105
Welding rods (mm)
2x660
2x880
Pump capacity (m3/h)
160
300
Machine cycle (sec.)
15-40
15-40
Weight (kg)
462
770
Power (kWh)
4,0-4,8
5,5-6,6
Insert plates
2
4
Control systems
10-program memory
Optional
Optional
Advanced Control System
Optional
Optional
Soft air
Optional
Optional
Liquid control
Optional
Optional
Gas packaging
Optional
Optional
ACS function: Progressive vacuum
Standard
Standard
ACS function: Red meat
Standard
Standard
ACS function: Marinade
Standard
Standard
ACS function: Maturation
Standard
Standard
ACS function: Jars
Standard
Standard
