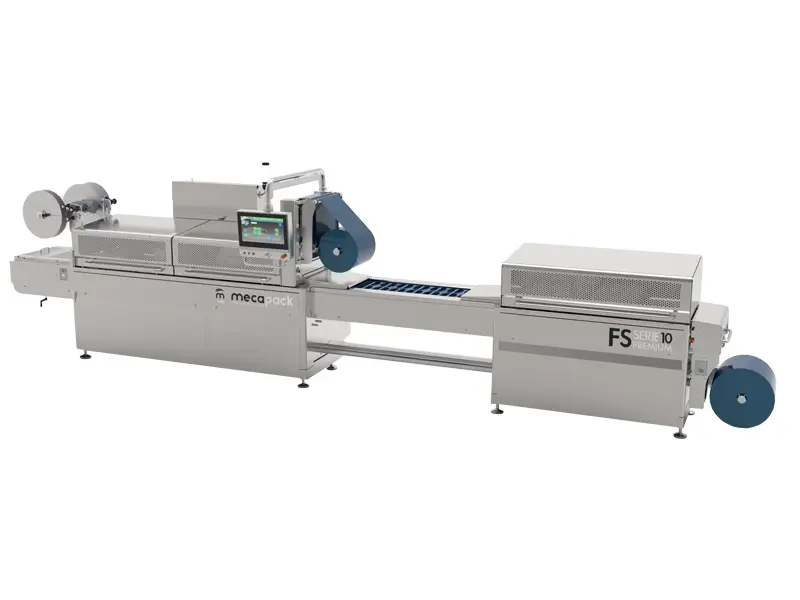

FS Serie 10 Premium
Key features General Configuration Customizable thermoformer Machine Length : 60' frame Supports vacuum, MAP, Skin Over process Machine speed up to 20cpm Film Specifications Film Thickness : Up to 40 mil Film Width : Two machine frame up to 16,61" or up to 24,4" Advance Step: Up to 4' Forming & Sealing Process Forming : [...]

Key features - General Configuration

Customizable thermoformer

Machine Length : 60' frame
Supports vacuum, MAP, Skin Over proces
Machine speed up to 20cpm

Film Specifications

Film Thickness : Up to 40 mil
Film Width : Two machine frame up to 16,61" or up to 24,4"
Advance Step: Up to 4'

Forming & Sealing Process

Forming : Independant station with opennable ergonomic top tool / Separated preheating and froming station / Forming station with forming mechanical assistance
Sealing : Independant station with opennable ergonomic top tool / Servodrived openning top tool

Cutting Mechanism

Transversal cutting station type : Flexible / Rigid crush / Rigid punching
Longitudinal : Motorized shaft with QCO echangeable cutting shaft / Shared knife cutting shaft / Dienes cutting shaft
Shape cutting station type : Flexible / Rigid Punching / Rigid Progressive

Fast and Simple Format Change

Discover the ultimate in packaging innovation with our versatile thermoforming machine, featuring patented quick tool change technology that lets you switch formats in just 10 minute

Engineered to revolutionize efficiency and flexibility, this cutting-edge machine is both compact and ergonomic, setting a new benchmark in the industry.

Hygienic Design

Our machine is engineered with operator safety and comfort in mind. The user-friendly design includes :

User friendly design with rounded profiles and chassisLift up covers assited by cylindersRounded / full sealed gripping handlesHMI on short or long bracketMachine frame and casings without retention zone, facilitating all access for cleaning and water drainage.

Our ergonomic / hygienic loading area design as an open structure with removable top chains covers for a easiest cleaning process on the most contaminated machine area.
