Soldering bar configuration
Operating system
Additional options

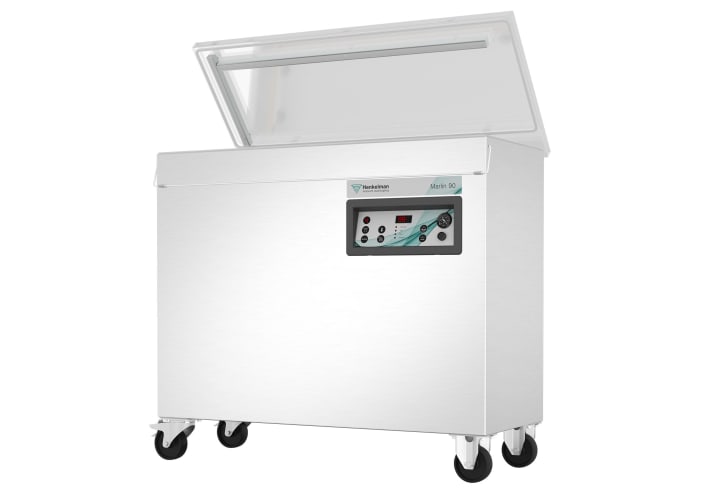

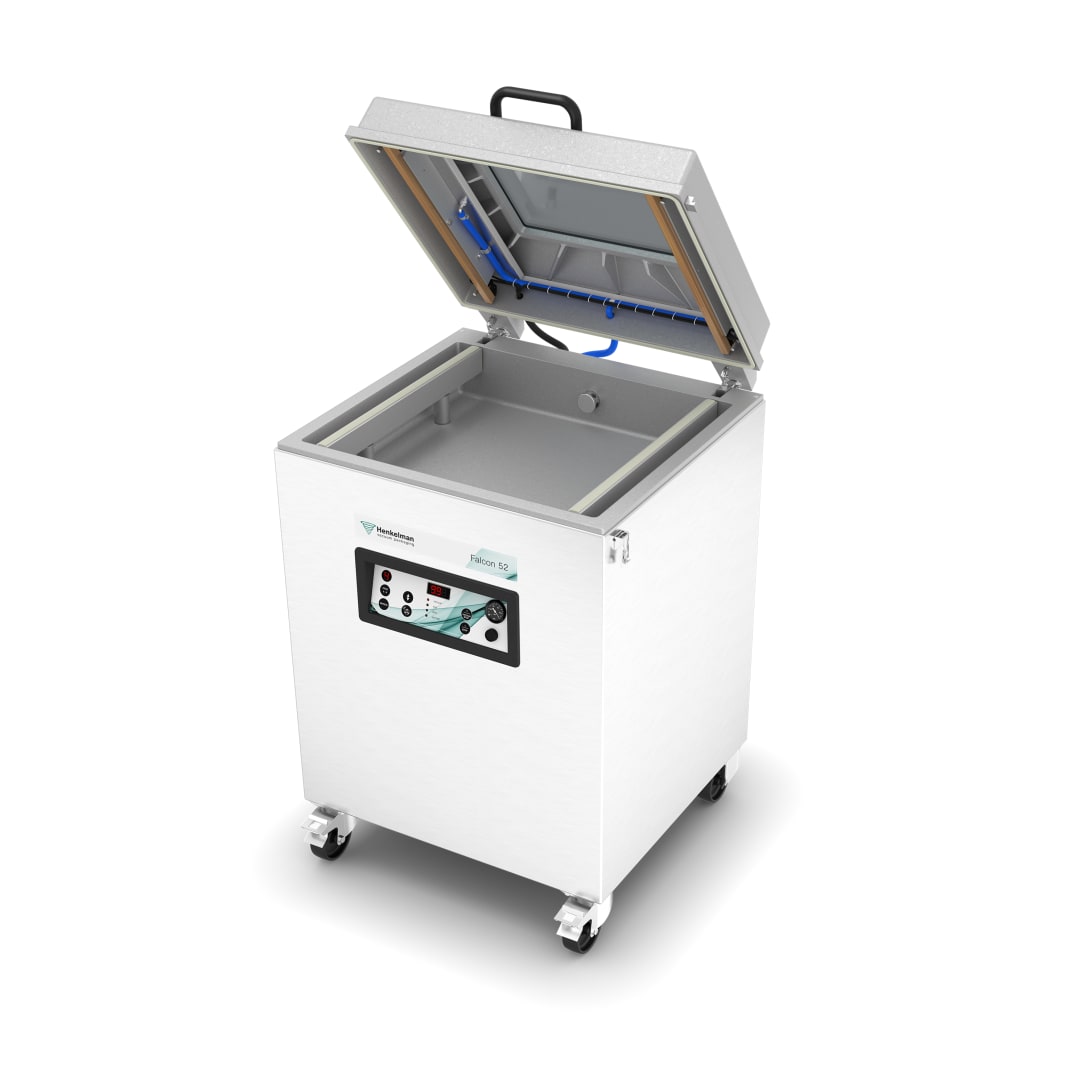

Base-mounted vacuum packaging machine with transparent plastic lid
and powerful pump. Manufactured as standard with
a stainless steel chamber and two sealing bars on the left and
right for simultaneous packaging of several products or large
products.
Weight: 136 kg
Pump capacity: 35m3/h
Machine cycle : 10-24 sec
Weight: 165 kg
Pump capacity: 55 m3/h
Machine cycle: dry
Weight: 219 kg
Pump capacity: 55 m3/h
Machine cycle: dry
Welding system
Highlights
Automatic maintenance notification when the specified number of cycles has been reached. Standard on all Henkelman machines.
Adjusts the product to the correct position in relation to the
bar seal for optimum packaging. It also reduces the volume of the
chamber and speeds up the vacuuming process.
Large chamber
Whether you want to vacuum-pack larger products, such as
a whole salmon, or four products at the same time, the large
chamber makes it possible. The Marlin model is therefore
ideal for butchers and caterers who produce
numerous portions every day.
All-option machine
Depending on individual requirements, each Marlin model can be
extended with one of the many options on offer. Think, for example, of
gas injection (MAP) or, when packaging liquids,
liquid control. You choose what you
need for an optimal packaging process in your workplace.
The Marlin has a transparent plastic lid. This allows
close monitoring of the vacuum bagging process. Every
cycle. This is ideal for packaging (un)prepared foods, for example
in the gastronomy or catering sectors.
Specifications |
|
|
|
|---|---|---|---|
|
Chamber dimensions (mm) |
520 x 500 x 200 |
520 x 500 x 200 |
320 x 890 x 100 |
| 2 sealing bars (left-right) |
520 x 500 x 200 |
520 x 500 x 200 |
320 x 890 x 100 |
| 1 sealing bar (front) |
470 x 600 x 200 |
470 x 600 x 200 |
N/A |
| 2 welding bars (left-front) |
N/A |
N/A |
280 x 940 x 100 |
|
Machine dimensions (mm) |
710 x 700 x 1025 |
710 x 700 x 1025 |
480 x 1066 x 970 |
|
Welding rods (mm) |
2x510 |
2x510 |
2x310 |
|
Pump capacity (m3/h) |
40 |
63 |
63 |
|
Machine cycle (sec.) |
11-27 |
11-24 |
10-20 |
|
Weight (kg) |
136 |
165 |
219 |
|
Power (kWh) |
1,1 |
1,5-2,4 |
1,5-2,4 |
|
Insert plates |
2 |
2 |
3 |
|
Control systems |
|
|
|
| 10-program memory |
Optional |
Optional |
Optional |
| Advanced Control System |
Optional |
Optional |
Optional |
|
Soft air |
Default |
Default |
Default |
|
Liquid control |
Optional |
Optional |
Optional |
|

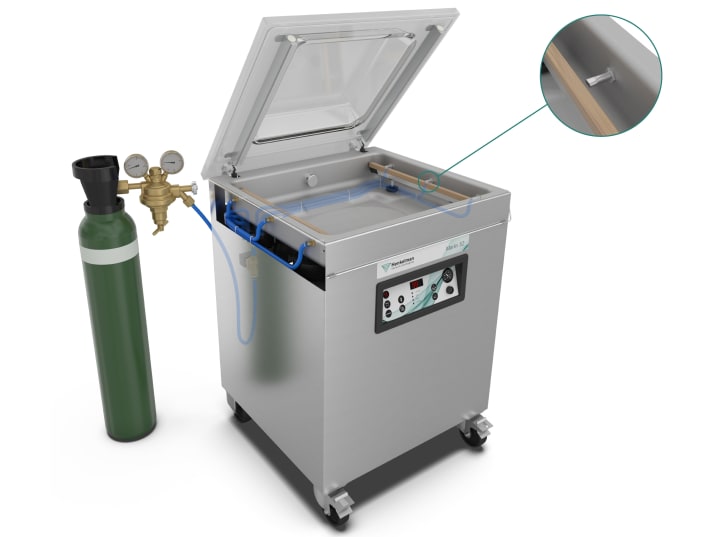

Gas packaging |
Optional |
Optional |
Optional |
|
ACS function: Progressive vacuum |
Standard |
Standard |
Standard |
|
ACS function: Red meat |
Standard |
Standard |
Standard |
|
ACS function: Marinade |
Standard |
Standard |
Standard |
|
ACS function: Maturation |
Standard |
Standard |
Standard |
|
ACS function: Jars |
Standard |
Standard |
Standard |
