Soldering bar configuration
Operating system
Additional options

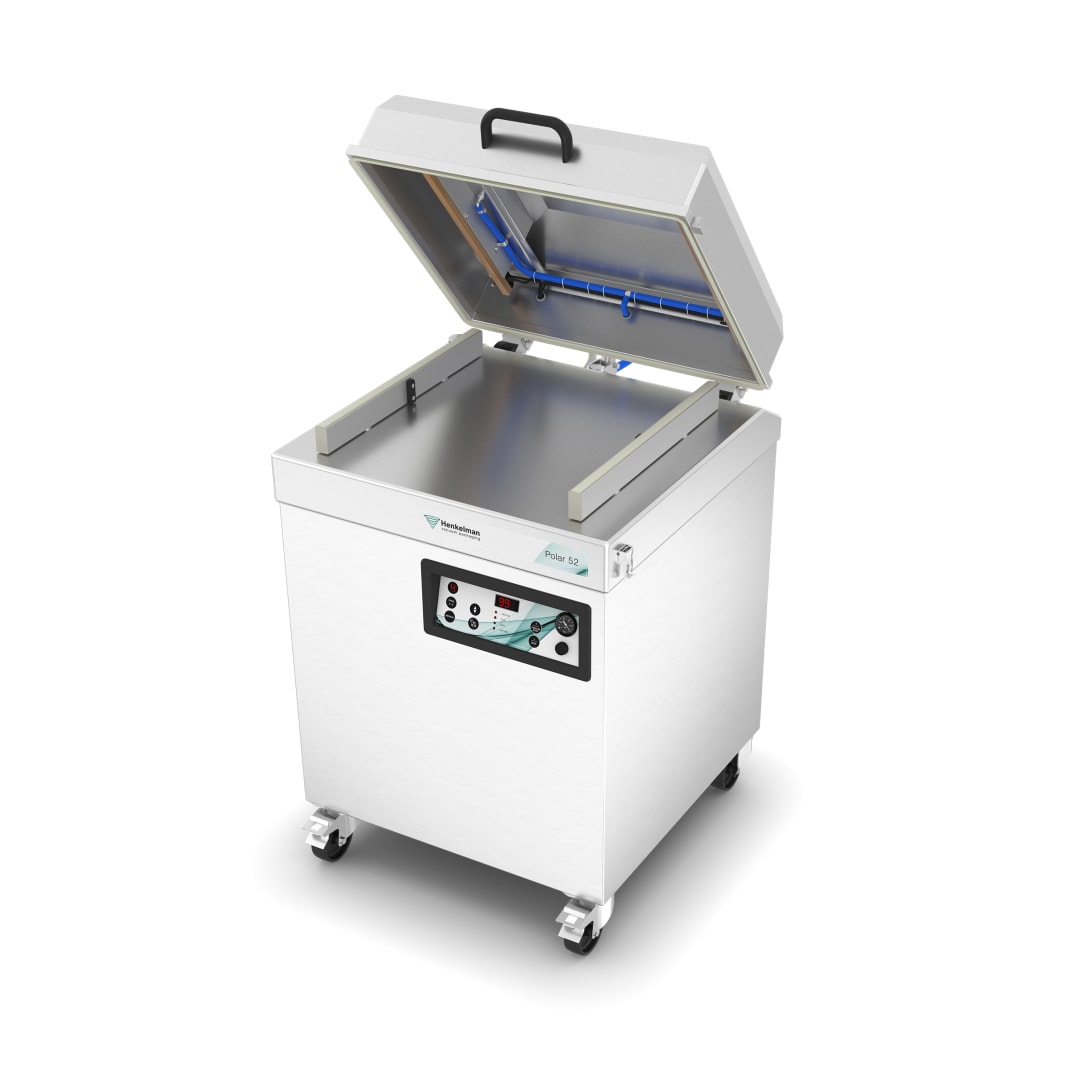

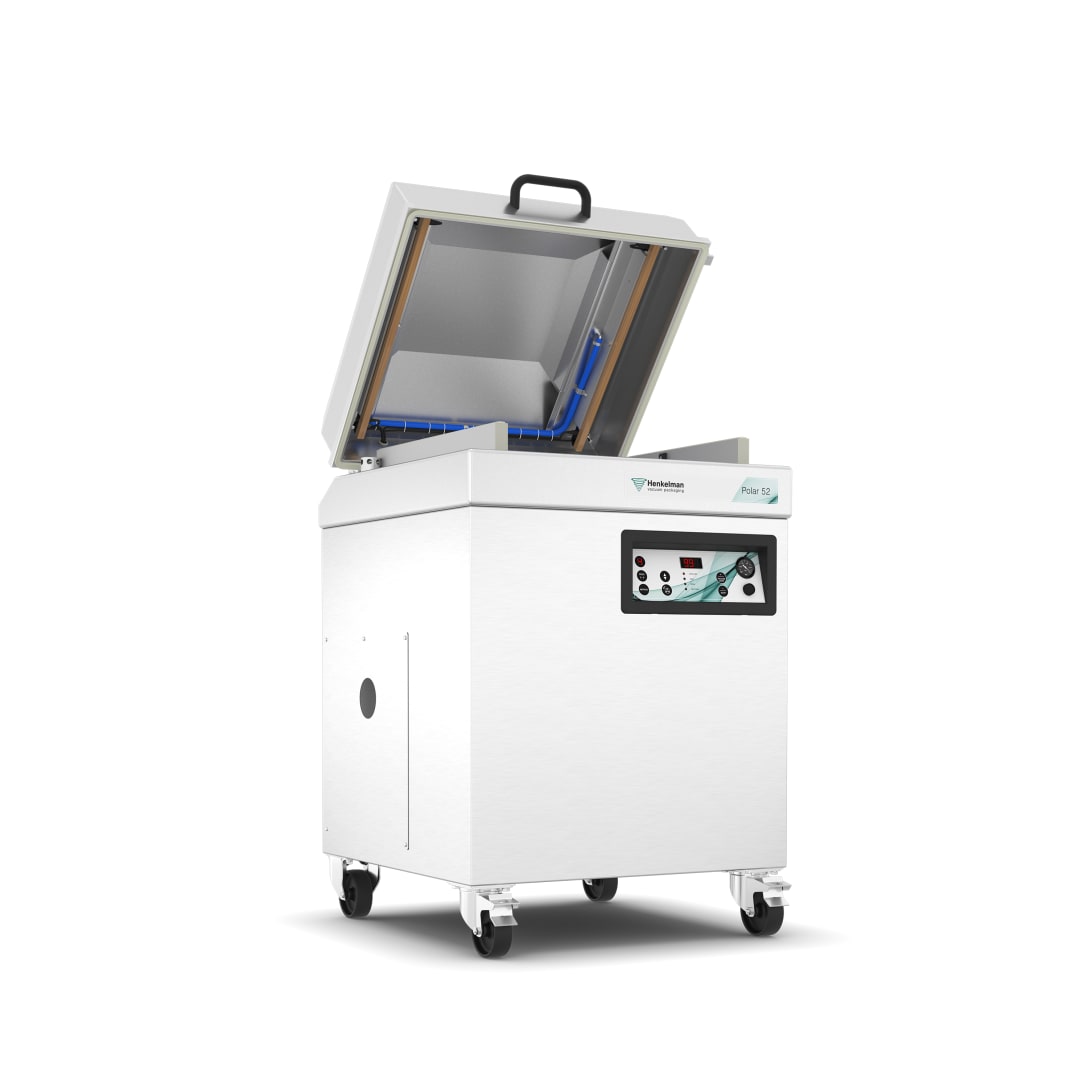

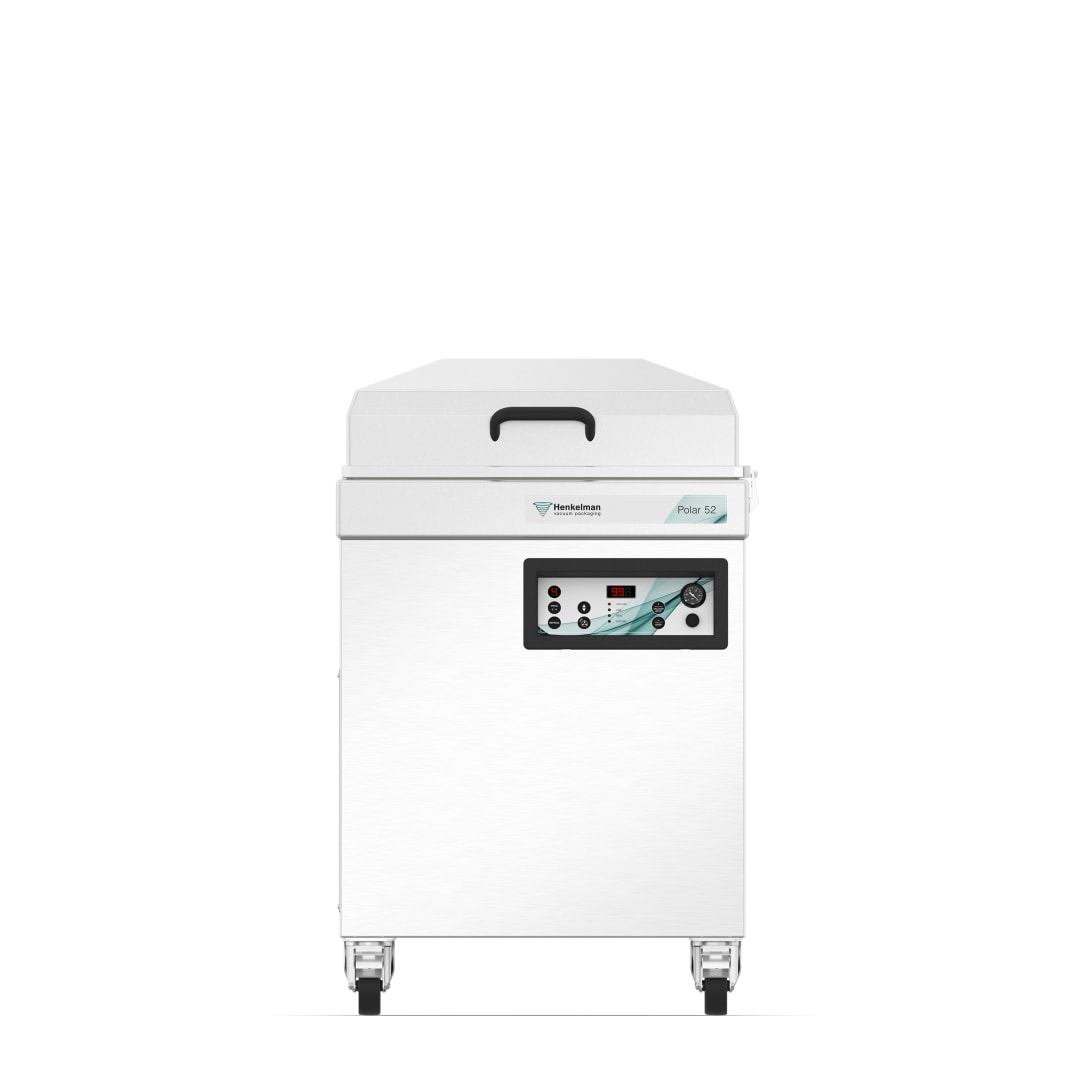

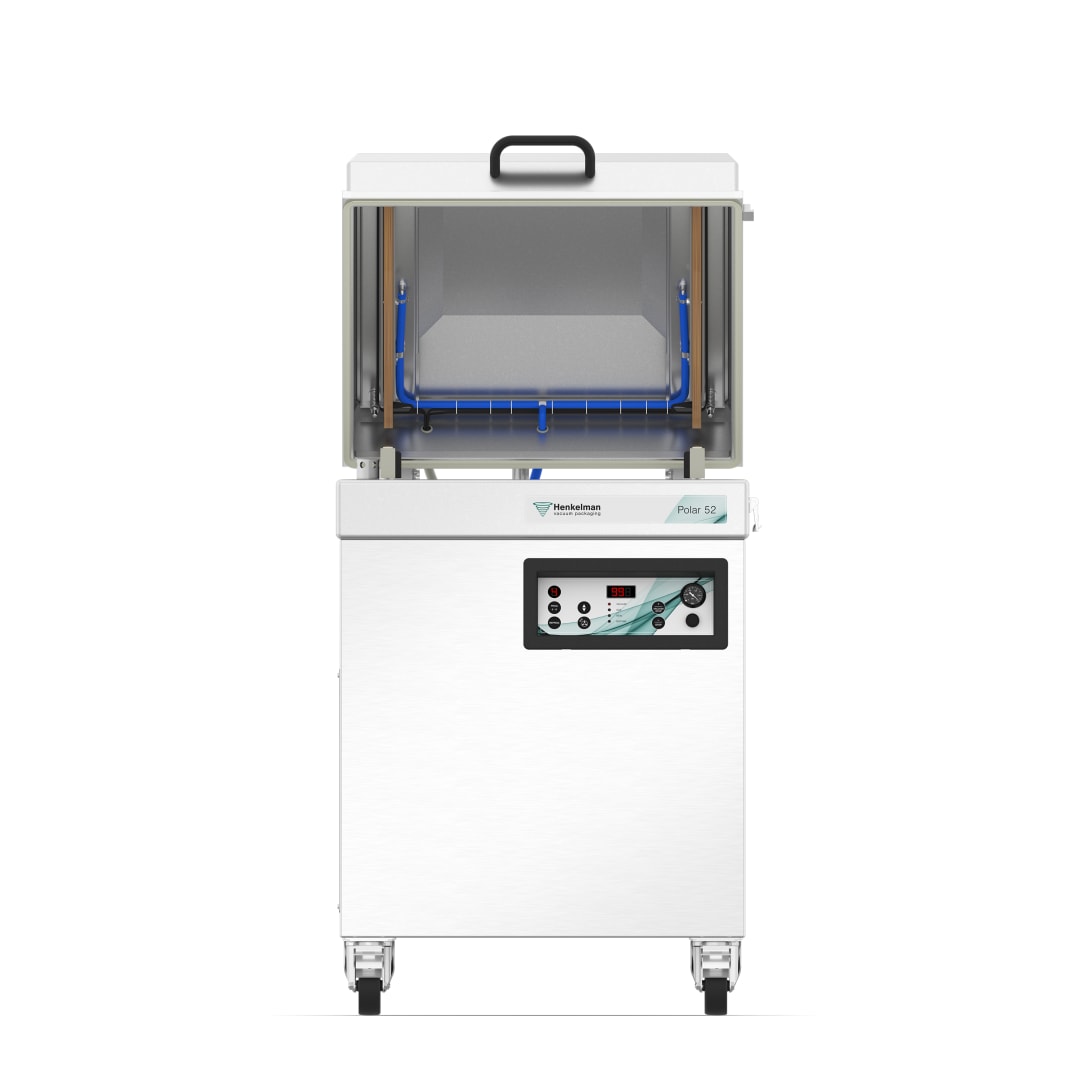

Stainless steel base model with flat table. This facilitates
cleaning of this machine. Available in various sizes
and with different pump capacities and
welding bar configurations. Â
Weight: 183 kg
Pump capacity: 55m3/h
Machine cycle : 11-26 sec
Weight: 241 kg
Pump capacity: 88 m3/h
Machine cycle: dry
Weight: 241 kg
Pump capacity: 88 m3/h
Machine cycle: dry
Welding system
Additional options
Highlights
Automatic maintenance notification when the specified number of cycles has been reached. Standard on all Henkelman machines.
Adjusts the product to the correct position in relation to the
bar seal for optimum packaging. It also reduces the volume of the
chamber and speeds up the vacuuming process.
Short injections of air prevent the meat from degassing during the sealing phase
. This guarantees a longer shelf life and avoids the formation of air bubbles in the packaging. This guarantees a longer shelf life and avoids the formation of air bubbles in the packaging
.
Complete series
This extensive range of pedestal-mounted models meets the most diverse
packaging requirements. Choose from
different chamber dimensions and
sealing bar configurations, to tailor the machine to your needs.
Robust construction
Every Polar model is made of stainless steel, a durable and hygienic
material. The perfect transition between the chamber and
the casing creates a solid unit that is also easy to
clean. Â
Flat table
Polar\'s flat tables are extremely practical for packaging
different products. The flat table is also easy to clean,
thanks to the removable silicone gasket holder. Delivered as
standard with every model in this series.
Specifications |
|
|
|
|---|---|---|---|
|
Chamber dimensions (mm) |
520 x 500 x 200 |
510 x 760 x 200 |
620 x 1050 x 280 |
| 2 sealing bars (left-right) |
520 x 500 x 200 |
560 x 700 x 200 |
670 x 1000 x 280 |
| 2 welding bars (front-right) |
N/A |
510 x 760 x 200 |
620 x 1050 x 280 |
| 3 sealing bars (left-front-right) |
N/A |
510 x 700 x 200 |
620 x 1000 x 280 |
| 2 welding bars (front-rear) |
N/A |
460 x 810 x 200 |
590 x 1100 x 280 |
|
Machine dimensions (mm) |
785 x 700 x 1100 |
790 x 900 x 1100 |
990 x 1200 x 1150 |
|
Welding rods (mm) |
2x505 |
1x795 1x480 |
1x1090 1x620 |
|
Pump capacity (m3/h) |
63 |
100 |
160 |
|
Machine cycle (sec.) |
12-30 |
13-26 |
15-33 |
|
Weight (kg) |
183 |
241 |
390 |
|
Power (kWh) |
1,8-2,4 |
2,3-3,4 |
2,3-6,6 |
|
Insert plates |
2 |
2 |
3 |
|

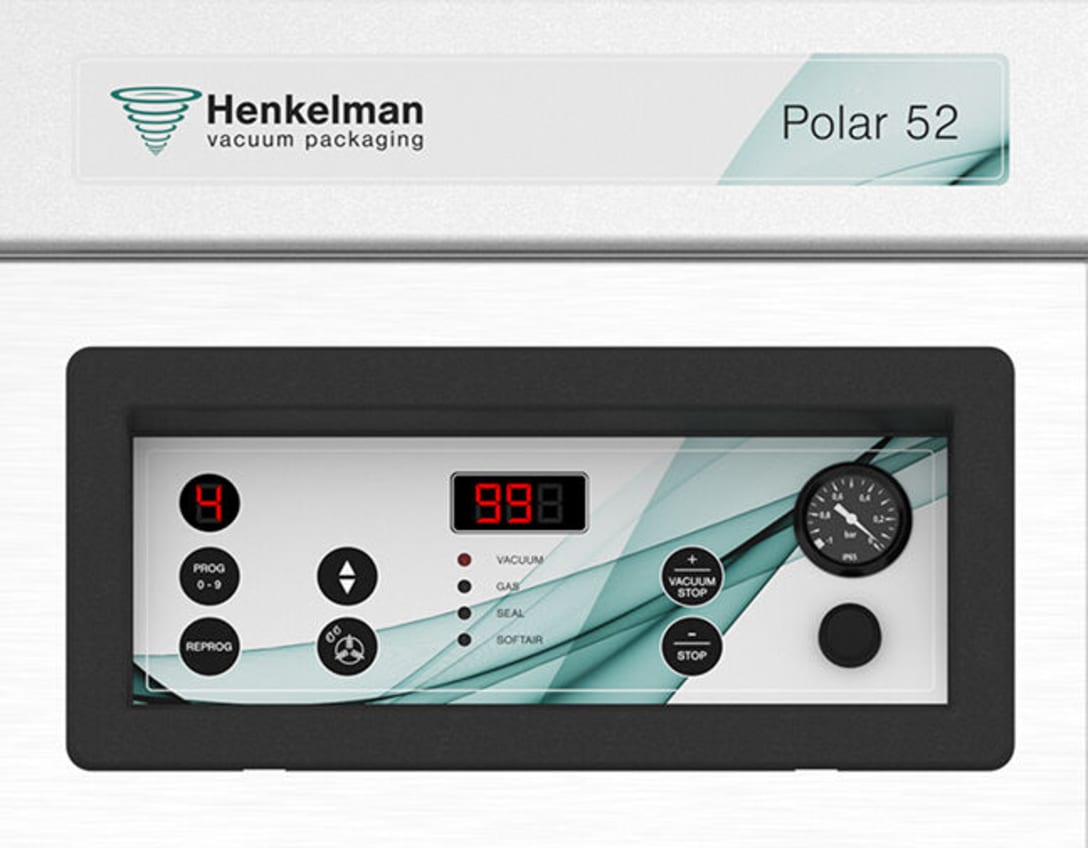

Control systems |
|
|
|
| 10-program memory |
Optional |
Optional |
Optional |
| Advanced Control System |
Optional |
Optional |
Optional |
|
Soft air |
Default |
Default |
Default |
|
Liquid control |
Optional |
Optional |
Optional |
|
Gas packaging |
Optional |
Optional |
Optional |
|
ACS function: Progressive vacuum |
Standard |
Standard |
Standard |
|
ACS function: Red meat |
Standard |
Standard |
Standard |
|
ACS function: Marinade |
Standard |
Standard |
Standard |
|
ACS function: Maturation |
Standard |
Standard |
Standard |
|
ACS function: Jars |
Standard |
Standard |
Standard |
